The manufacturer Maxsun launched two new motherboards in the category on the market MoDT (Mobile on Desktop), identified as MS MoDT 230H D4 WIFI and MS MoDT 205H D4 WIFI.
The models come with processors Intel Core 200H integrated directly into the PCB and accept DDR4 memoryeliminating the cost of DDR5 modules.
Prices are positioned between 800 and ¥1500 (Chinese yuan)a range that is equivalent to approximately $150 (~ R$ 575.65) in the entry model and around $200 (~ R$ 1,079.34) in the top configuration.
Architecture and positioning of MoDT models with Raptor Lake
The line MoDT bet on one 2 in 1 design which unites processor and motherboard in a single unit. The approach sacrifice the possibility of to replace the CPU in the futurebut reduces the initial investment by cutting the combined cost of a chip socket and a conventional motherboard.

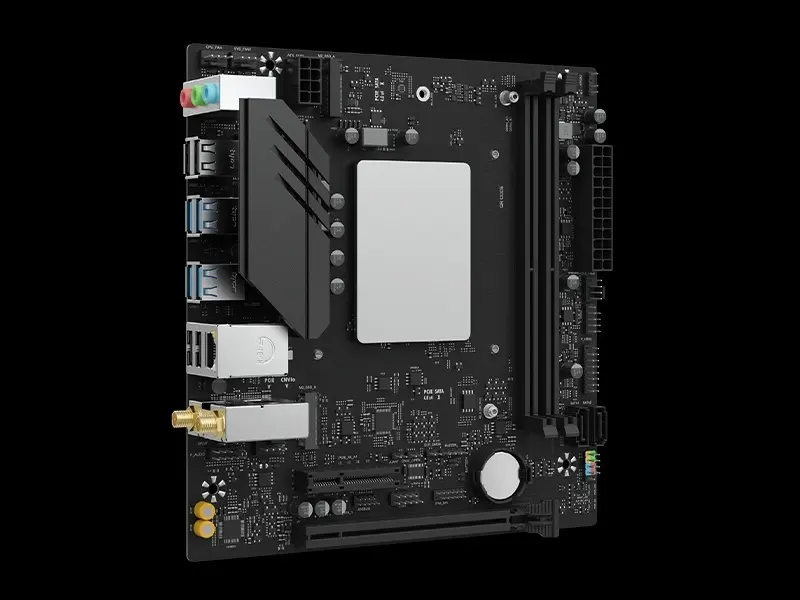

You two releases use the same PCB layout com regulator 5 phase voltageone 8 pin connector dedicated to food from the CPU and two DIMM slots to DDR4.
THE adoption of the DDR4 standard keeps settings aligned to the input segment. For comparison purposes, a Intel Core i5-13400 of 10 cores follows table between 150 and $180 (734.06 ~ R$880.87), while a 8-core Core i3 is around US$100 (~ R$ 489.37).
One basic profile motherboard would add another 80 to US$100 to the account (391.50 ~ R$ 489.37). To the MoDT from the Maxsun Therefore, they emerged as a lower total cost alternative for limited-budget gamer builds.
Technical specifications of integrated processors
| Specification | Intel Core 7 230H | Intel Core 5 205H |
|---|---|---|
| Cores/Threads | 10 (6 P-Colors + 4 E-Colors) / 16 | 8 (4 P-Colors + 4 E-Colors) / 12 |
| Total cache | 24MB | 12MB |
| Max boost clock | 5.20GHz | 4.80GHz |
| Base power | 45W | 45W |
| Maximum turbo power | 115W | 115W |
Motherboard infrastructure and thermal support
Both revisions share the same pattern of connectivity and expansion. The resources of storage and network can be seen in the table below.
| Feature | Description |
|---|---|
| Expansion slots | 1x PCIe 5.0 x16; 1x PCIe 4.0 x4 |
| Storage | 2x M.2 Gen4; 2x SATA III |
| Rear USB | 4x USB 3.2 Gen2; 2x USB 3.2 Gen1; 6x USB 2.0 |
| Audio | 3-channel HD codec |
| Wired network | 1x 1GbE LAN |
| Wireless network | Wi-Fi 6 plus Bluetooth 5.3 |
The system maintains compatibility with any cooler designed for LGA 1700 sockets or LGA 1800. Dimensions follow the standard micro ATXwith 190 x 180 mm (mm).
To the unite processor and motherboard in one piece with lowest starting price and native support for DDR4the Maxsun offers a direct route for anyone who needs to build a functional PC without having to break the bank.
Both options reach the market Chinese with the 200H serieswithout any indication of variations with lithography or architecture different from those listed.
To finishwe emphasize that all values reported in this matter are fruits of direct conversions and, until now, nothing was announced about hypotheticals official versions node Brazil.
